Easy to Use Automation Features

Sharp, High Contrast, Impact Free

High Speed Galvo Steering

Compact & Fast Set-Up

100,000 Hrs Laser Lifetime

1 Year Warranty

Turnkey System

Permanant Marking

Air Cooled/No Chiller needed

Tunable Pulse Rate

No routine maintenance/No Consumable

Digital I/O for Easy Operation

Red Aiming Pointer/No more mistakes

Solid Aluminum Top Work Surface & Swing Arm Laptop Stand

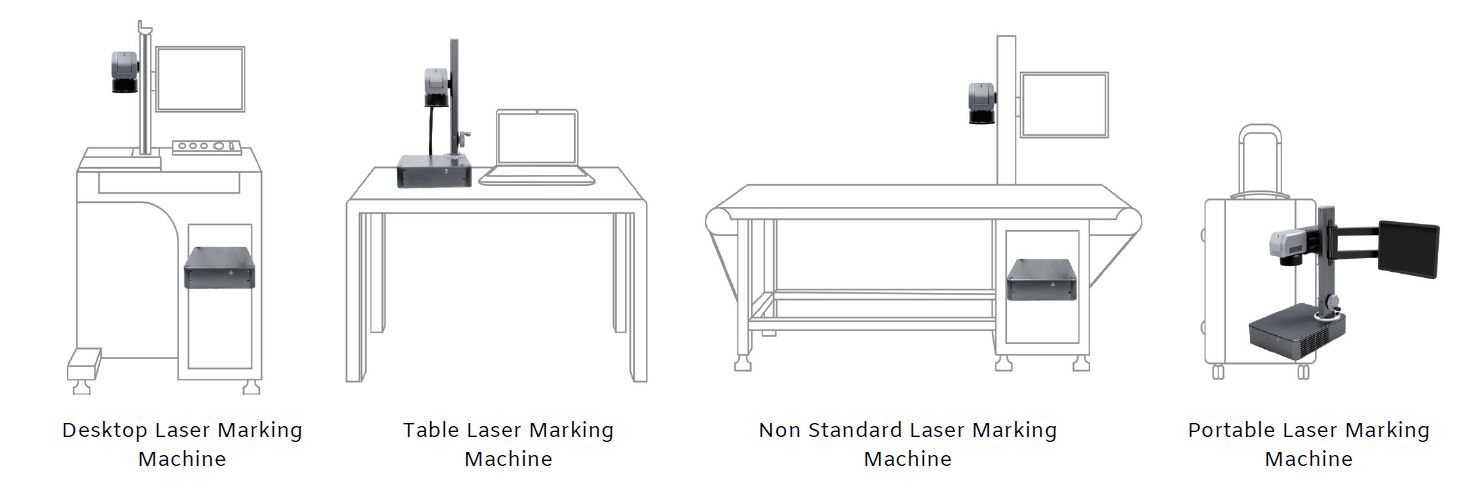

Portable Tabletop Units to Automated Production Systems Available

Laser Power:

10W,20W,30W

Wavelenth:

1064nm

Standard Marking Area:

100mm*100mm

Optional Marking Area:

160mm*160mm,200mm*200mm

Marking Speed:

≤7000mm/s

Minimum Line Width

0.02mm

Minimum letter

English: 0.2 x 0.2mm

Marking Depth

0 ~0.5mm

Location precision

≤0.01mm

Resetting positioning accuracy

0.002

Beam Quality

M2:1.2~1.8

Electrical Requirements:

Ac220V±10%.50HZ.5Amp

Cooling mode

Air cooled

Scan Head

High Precision Digital Scan Head

Unit Power

<0.5kw

Operational Temp Range

10-40˚C

Operational Humidity Range

5%-75%, Non-condensing

Warranty:

2 years on laser source

Dimensions:

25*60*80MM

Net Weight

38KG

True Type Fonts

Single Stroke Fonts

Elliptical Text

Sequential Serial Numbers

Customizable Auto Dating

Barcodes

QR Codes and Data Matrix

UID Wizard

Logos

Photo Quality Images - JPG, TIF, GIF

Corel Draw, Adobe Illustrator

Raster Graphics

Vector Graphics

CAD Files

Stainless Steel

Steel

Aluminum, Carbide

Nickel

Titanium

Cast Iron

Chrome

Painted Metal Alloys

Multi-Coated Metals

Plastics/Rubber

Backlit Buttons

Polycarbonate

PVC

Composites

Many more materials
